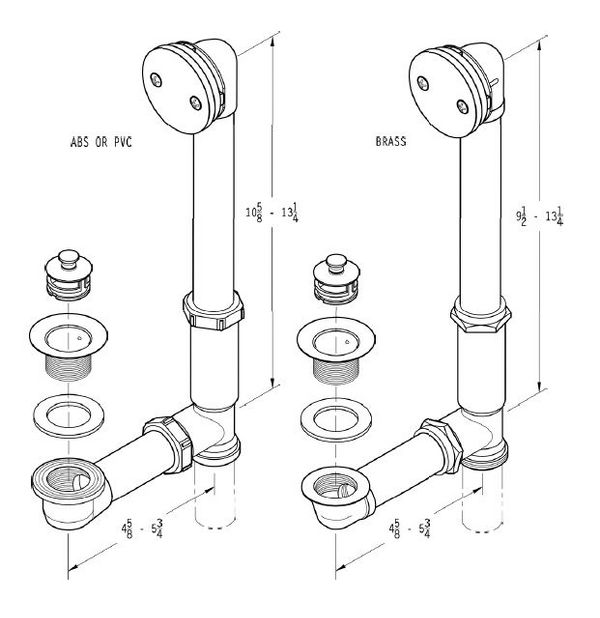

42 tub waste and overflow diagram

7 Bathtub Plumbing Installation Drain Diagrams Jan 12, 2021 · Here are a few bathtub drain schematics and bathtub plumbing diagrams. Fairly simple drain system. If you have to hold your drain lever down for the tub to drain it is more than likely the tension spring on the back of the overflow plate. You can replace just this plate at your hardware store for a few dollars. How a Bathtub Works? | Plumbing & Drain System - The Home ... In the bathtub, the overflow serves as protection to stop water when it reaches a certain level and it is located a few centimeters from the edge of the tub. The anti-overflow device is in most cases a hole that, more or less is hidden and that is connected by a flexible pipe to the upper part of the drain. Bathtub Overflow Drain Diagram

Bathtub Plumbing Installation Drain Diagrams | Bathtub ... 7 Bathtub Plumbing Installation Drain Diagrams Here are a few bathtub drain schematics and bathtub plumbing diagrams. Fairly simple drain system. If you have to hold your drain lever down for the tub to drain it is more than likely the tension spring on the back of the overflow plate. You can replace just this plate B Bubbajuju 160 followers

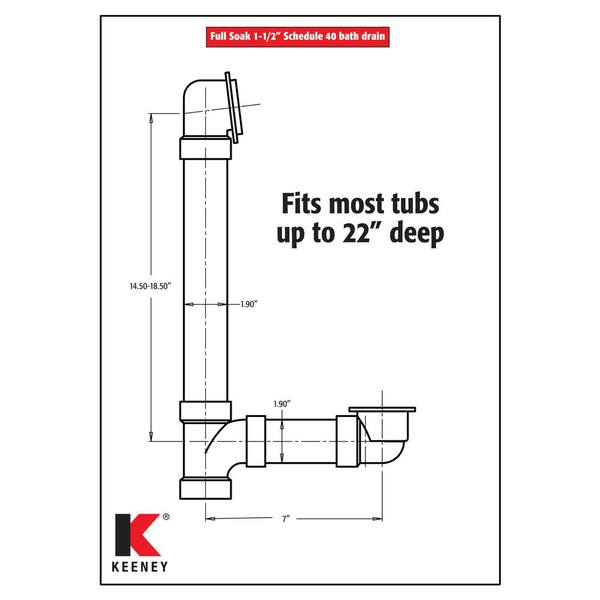

Tub waste and overflow diagram

Waste & Overflow - Canplas Industries Ltd. Adjustable Waste & Overflow ABS Installed in a 1-1/2" ABS DWV drainage system under a bathtub to allow for bath drainage and protection against overfilling. Connection to the drainage system can be either vertical or horizontal from the bottom of the overflow drain or vertically beneath the tub. drain. Tub Complete Drain Assembly - Drains & Drain Parts - Drain ... Everbilt Trip Lever 1-1/2 in. White Poly Pipe Bath Waste and Overflow Tub Drain in Oil Rubbed Bronze. Model# WO-1-RB-TL (76) $ 31 63. KOHLER ClearFlo Slotted Overflow Bath Drain, Vibrant French Gold. Model# K-7272-AF (3) See Low Price in Cart. American Standard Max 1-1/2 in. Brass Deep Soak Drain in Polished Chrome. Instructions on How to Replace a Tub Drain Overflow | Home ... Place the new overflow drain cover against the bathtub's overflow opening and line up the screw holes. Insert the screws into the drain cover's mounting holes, and fasten it in place using a...

Tub waste and overflow diagram. Offsetting a Bath Waste and Overflow on a Tub to Prevent ... This is a video on offsetting a bath waste and over flow and preventing extra work on the floor joists. Cutting a floor joist is the very last thing you woul... Installing a Bathtub Waste-and-Overflow Tube Nov 17, 2021 · Attach the Overflow Cover Plate Position the gasket for the overflow tube on the backside of the tub, between the wall of the bathtub and the mouth on the overflow tube. If the gasket is tapered, the thicker side of the gasket should face down. Replacement parts for brass bathtub drains Tub overflows are usually 1 1/2" diameter and are designed to normally handle 2 to 3 gallons of water per minute if the piping is clean and free of any debris or hair. How to Fix a Leaky Bathtub Overflow Tube - The Spruce Check the Overflow Gasket . A tub overflow pipe seals against the tub with a ring-shaped gasket that typically lies between the flange around the pipe opening and the backside of the tub wall. The gasket is made of neoprene or rubber and can become brittle and cracked over time, leading to leaks. To check the overflow gasket, remove the overflow plate.

PDF Geberit Bath Waste and Trap Systems GEBERIT BATH WASTE AND TRAP SYSTEMS Replacement Parts Replacement Parts and Kits (See page 37 for Item drawings) Item Description Model No. List Price $ 1 TurnControl Overflow/Drain Service Kit 242.767.00.1 31.00 2 Brass Tee Assembly — — 3 Chicago Code Brass Tee Assembly 241.766.00.1 59.00 PDF BEFORE INSTALLING INSTALLATION - Signature Hardware 2. Connect the tub shoe assembly (A), and rubber washer to the tub drain (B). 3. Install the overﬂow assembly (C) with the beveled washer, overﬂow plate, mounting screw (provided) and any other washers or rubber sealing gaskets included. 4. Attach the waste and overﬂow tee (D) to the overﬂow assembly (C) Tub Drain Parts - Bathtub Drain Parts - Bath Drain Parts ... Our tub drain and bathtub drain parts category offers a wide range of parts used in bath waste applications, such as tub trip levers, overflow plates, tub and basin stoppers. [pool1] 53 items. Reset. Filter & Sort. Bathtub Drains and Drain Parts - by Watco Choose single hole overflow plate or two hole overflow plate Available in many decorative finishes Click here to see how easy it is to install one of these great tub drain trim kits Requires: 1-5/8" (1.600") minimum ID opening 2-7/8" (2.875") maximum OD flange Single Hole Overflow Plates Select finish & quantity Double Hole Overflow Plates

PDF Designer Collection Do not store tub in temperatures below 32 degrees Fahrenheit. Proper waste and overflow installation is the responsibility of the installer. MTI does not warrant leaks associated with im-proper waste and overflow installation. There are many possible ways to install your new MTI tub, and some may require different framing than Bathtub Waste Outlets and Overflows | UpCodes Bathtubs shall be equipped with a waste outlet that is not less than 1 1 / 2 inches (38 mm) in diameter. The waste outlet shall be equipped with a water-tight stopper. Where an overflow is installed, the overflow shall be not less than 1 1 / 2 inches (38 mm) in diameter. P2713.1 Plumbing Fixtures, Bathtub Waste Outlets and Overflows Faucets: Assembly Diagrams & Spec Sheets - American Bath ... BATHTUB ACCESSORIES F5910 Supply Line Shutoff Valves: Assembly F1100 Straight Supply Lines: Assembly F5711 Waste & Overflow with Rubber Stopper: Spec Assembly F5714 Waste & Overflow with Tip Toe Stopper: Spec Assembly F5760 Waste & Overflow with Lift & Turn Stopper: Assembly F5707 Euro Drain with Tip Toe Stopper: Assembly Discontinued Items Guides Bath Waste and Overflow - Mountain Plumbing Products 1. Selecting a Size All you need to know are the ABC's of your tub, just take a look at the diagram so you know what these three key measurements are. A: "Drain Shoe" - This is the distance from the center of the drain to the surface the overflow will be mounted on.

I have a old Kohler waste & overflow assembly, this has to be ...

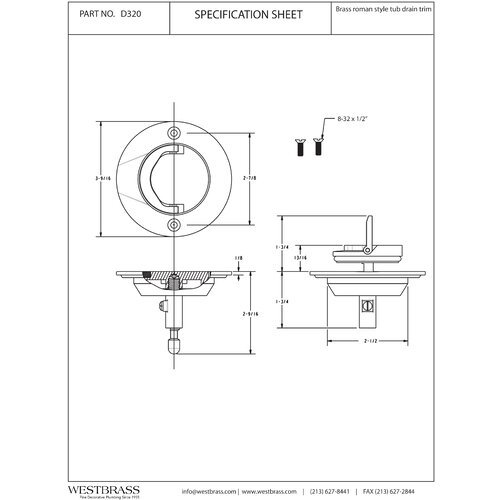

Identifying Bathtub Drain Parts - Hunker Bathtub Drain Parts. The waste and overflow system of a bathtub consists of a bath drain stopper mechanism and a waste and overflow pipe assembly. There are three main types of bathtub drain stoppers: the pop-up/lift-up, the plunger/lift bucket gate and the trip lever/rocker arm pop-up. The stopper mechanism is integrated with the waste and ...

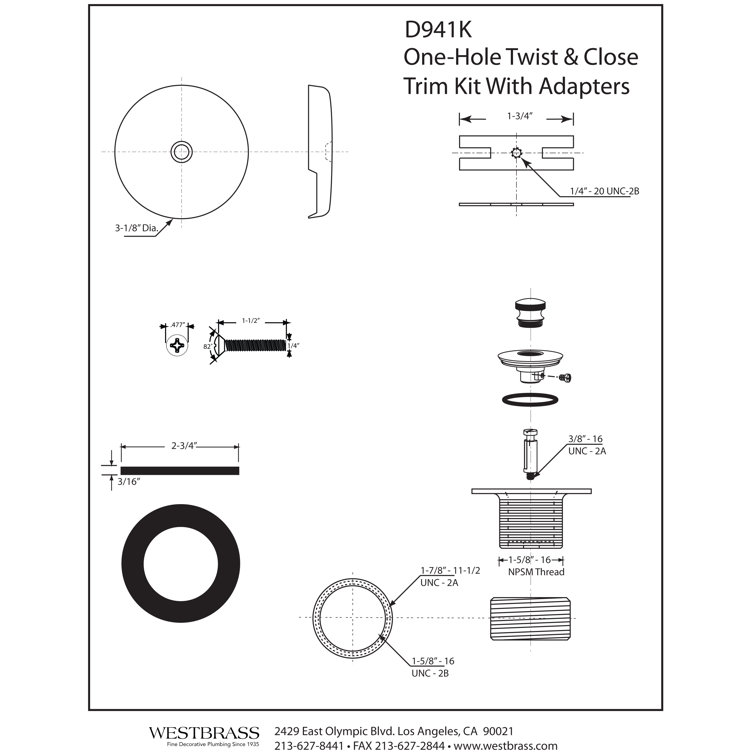

Westbrass Pull PVC Bath Waste Leg Tub Drain with Overflow ...

PDF FITTING INSTRUCTIONS Bath Pop-Up Waste b. It is advised to fit waste to bath BEFORE installation of the bath. INSTALLATION 1. Insert Overflow Tube (8) to the Bath Overflow (6). It is advisable to apply a small bead of silicone sealant on the connection. 2. Place Overflow Rubber Washer (5) onto the Bath Overflow (6). 3. Place Overflow Washer (4) onto the Overflow Flange (3). 4.

Bathtub Plumbing Installation Drain Diagrams | Plumbing ...

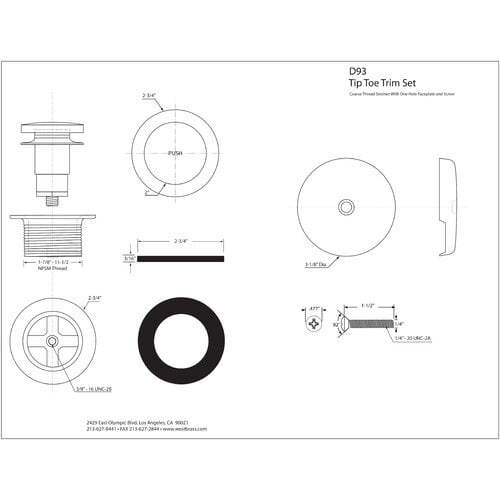

Watco Manufacturing Company Universal NuFit™ Trim Kits. The Quickest Way to a Brand-New Bath Drain, Bath Waste or Overflow. In just a few minutes you can install a sparkling, shiny new drain and stopper. You don't even have to remove the old strainer body. No tools needed. Does not extend down into the drain which means it can be used in almost any tub.

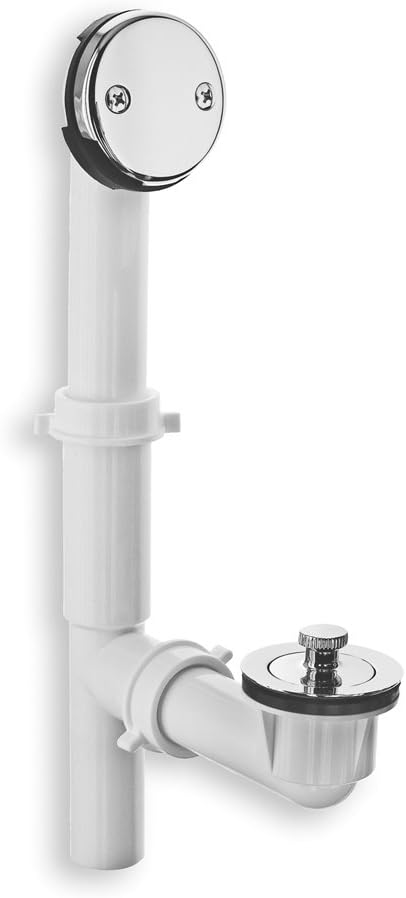

Tub Waste and Overflow

What is a Bathtub Overflow Drain? 2020 Guide | Badeloft Overflow drain diagram An overflow drain consists of an overflow cover which protects the top of the overflow and usually contains the switch that engages and disengages the trap. The washer seals the top of the overflow. This leads to the bottom of the drain, which contains a separate cover that is sealed by a gasket and a stopper. Photo Source

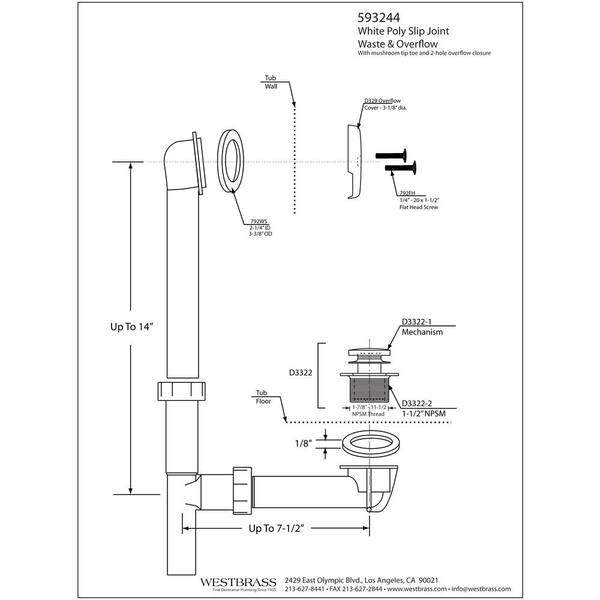

Westbrass Tubular Trip Lever Bath Waste Leg Tub Drain with ...

The Main Parts of a Bathtub (with Illustrated Diagram ... The overflow pipe, which is located between your connectors and the drain, collects all of the excess water in your tub and directs it to your drain into a different pipe to lessen the load on your drain. Waste Outlet A waste outlet, also known as a drain-waste-vent, is a pipe that prevents waste products from getting into your water supply.
