Many steps WILL be different for each model of chainsaw!Symptoms:Chain saw starts but then dies.Fuel filter is loose in tank.Chainsaw will not start.Primer d... Mac 3200 chainsaw fuel line diagram · Discussion Starter • #1 • Sep 16, 2009 A friend gave me a MAC 3200 Chainsaw that looked new and when I filled it with a mixture of heating oil it ran perfectly for about 10 minutes and then I wouldn't start. Two fuel lines in the fuel tank broke into several pieces and were at the bottom of the fuel tank.

McCulloch Pro Mac 605, 610, and 650 Eager Beaver 3.7. McCulloch CP 125. McCulloch SP 105. McCulloch SP 125. For more information about your chainsaw, and to locate the dealer nearest you visit www.mccullochpower.com Your friendly, local dealer is always the best source for new parts and service work.

Mac 3200 chainsaw fuel line diagram

Sale. Fuel Gas Tank Gasket For McCulloch Pro Mac 10-10 55 700 chainsaw pART. $ 17.98. $ 29.99. Fuel hose line w/ grommet & filter replace McCulloch 94899 605 610 650 3.7 more. $ 17.99. Fuel Line & Filter for McCulloch # 215708 Pro Mac 10-10 55 60 700 800 850 301011. 35 Mcculloch 3200 Chainsaw Parts Diagram. Ditulis oleh Susan W Nexon Jumat, 11 September 2020 Tambah Komentar. Edit. The diagrams below can help you find the right part. Mcculloch products are identified by a model number in this instance 600035 followed by a suffix number 08. Looking For Mcculloch Model Mac3214 11 600032 07 Gas Chainsaw. carburetor, and disconnect fuel line and throttle link. Tighten carburetor mounting screws to 30-40 in.-lbs. (3.4-4.5 N-m). IGNITION. All engines are equipped with an electronic ignition system. The ignition coil and electronic circuitry are contained in a one-piece ignition module (10—Fig. MC130), which is serviced as a unit assembly.

Mac 3200 chainsaw fuel line diagram. Chain saw starts but then dies. Mcculloch chain saw mac 3516 chainsaw fuel line replacement. It has a separate primer bulb. How to connect mcculloch mac 3214 chain saw fuel lines. Many steps will be different for each model of chainsaw. I have a mcculloch 3200 chainsaw whose fuel line just rotted out. fuel line diagram for mcculloch chainsaw I need a fuel line diagram for model # 60014404 - McCulloch 16 Inch Gas Chain Saw question. 10 Jul 2016 — Mcculloch mac 3200. Mac chainsaw fuel line routing i recently came across a very lightly used mcculloch fr 21 allegedly the same as the eager ... Pluming diagram for mcculloch 3200 chainsaw. Need to have gas line connection diagram. Save up to 7 when you buy more. Chainsaw will not start. Mcculloch chainsaw fuel gas line hose 215708 301011 use on pro mac models 1010 see more like this. 1 first line in the tank with the fuel filter attached goes to the fuel pump side fitting of the ...

Trimmer Lines Trimmer Heads & Spools Fuel & Lubricants ... Fuel & Lubricants Customer Support Product Registration FAQ User Manuals How To Contact Us Service Locator Follow us For all the latest McCulloch news, events, videos and pictures; come on - join in! ... Fuel hose routing problem on a Mac 3200 Chainsaw I have a Mccoulough 3516 Chainsaw. I tried to fire it up after a - McCulloch Garden question.2 answers · 8 votes: This post helped me with my McCulloch Mac 3216 chainsaw. There are two holes in the gas tank ... Fuel Line. Part Number: 120394. Specs. Length 12 1/4". ID 1/16" ID. OD 3/16". Fits most trimmer equipped with Kioritz and McCulloch engines. Not compatible with greater than 10% ethanol fuel. Equipment Type String Trimmer. 480 x 360 px image size for mac 3200 chainsaw youtube inside mcculloch 3200 chainsaw fuel line diagram image source. Is there supposed to be a filter too. Mac chainsaw fuel line routing i recently came across a very lightly used mcculloch fr 21 allegedly the same as the eager beaver 2116 and discovered that all of the fuel lines had become ...

Pluming diagram for McCulloch 3200 Chainsaw? I Have a McCulloch 3200 chainsaw whose fuel line just rotted out. I have the new fuel line but need to verify the connections from fuel feed to primer ball, primer to carb, carb to fuel tank. Mcculloch mac 3200 chainsaw fuel line diagram About 463,000 results Images of m c c u l l o c h 3 2 0 0 f u e l l i n e d i a g r a m 3200 Chainsaw Fuel Line Diagram. 06.11.2018. 06.11.2018. 0 Comments. on Mcculloch 3200 Chainsaw Fuel Line Diagram. On the underside of McCulloch saws is a black and yellow tag; the upper number (“Power Mac Fuel ... I have a mac 3200 chain saw that i can get to run but dies after awhile. I replaced the fuel lines, it runs until fuel goes uder over flow tube. Do both fuel lines have to goto the bottom of the tank? If both fuel lines are submerged in fuel it runs perfect. The manual for that chainsaw requires a 20 :1 mixture of non-McCulloch two-cycle oil. That is oz. per gallon of unleaded gasoline regardless of what it says on the oil container. Listed below is a amazing picture for mcculloch fuel line diagram. We have been looking for this image throughout on-line and it originate from reputable resource.

Mcculloch 3200 Chainsaw Fuel Line Diagram Wiring Site Resource

McCullogh 3200 chain saw fuel lines. You'll have a total of three fuel lines associated with this saw. The line, in the tank, with the fuel filter attached goes to the fuel pump side fitting of the carburetor. The line, in the tank, that is about only an inch or so in the tank is the return line and originates at the "out" nipple of the primer ...

Hipa Fuel Air Filter Gas Line Primer Bulb Spark Plug For Mcculloch 2000 3200 3500 3516 Chainsaw

20 Nov 2009 — hello sir, fuel line replacement, for chainsaws. it is very important to use the same fuel line,O.D. & I.D.. you will need about a 1 ft. of ...1 answer · 32 votes: There is nothing available to the general public that provides what you ask! If service manuals exist they may not have the detail you seek! McCulloch ...

Poulan 2150 Fuel Lines Replacement Diy Forums

22 Sep 2011 — Check/Clean/Replace your fuel filter if you have one, normally they are located in the fuel tank of chainsaws. When you remove your fuel lines ...1 answer · 9 votes: Hi www donbened... I will also include a fuel routing picture. Sounds like you have dirt/debris in your caburetor jets,fuel passages or a diaphgram ...

Stihl Ms 170 Chainsaw Ms170z Parts Diagram Engine Housing

I have a Mac 3200 chainsaw. All the fuel lines fell apart, including the bulb from sitting. So I guestimated the connections. It will run if I shoot starting fluid into the carb, then stall when I stop spraying the juice. I may have routed the lines wrong. So I need a diagram of how the fuel lines go. Is there supposed to be a filter too?

Mcculloch Cutter Deck Belt M200117h M22 46t M185117h M200 117t 532405143 Ebay

Saw Parts Diagrams; McCulloch Parts Diagrams; McCulloch Parts Diagrams. PROMAC 610 650 TIMBER BEAR McCulloch 1635 AV, 1838AV, Eager Beaver 2116, Eager Beaver 2316, MAC 3516, MAC 3816, MAC 3818, Mac cat 16, Mac cat 18, Mac cat super 16, Mac cat super 18, Promac 3505, Promac 3805, Silver Eagle 2116, Silver Eagle 2318

How To Connect Mcculloch Mac 3214 Chain Saw Fuel Lines

Need a diagram for fuel lines to carb with primer bulb on a mcculloch mac 3200 chainsaw. Mcculloch chainsaw fuel line diagram. A diagram of the gas tank and primer would answered by a verified technician. Husqvarna 338xpt chainsawneed fuel line diagram. Chainsaw will not start. Replacing a mcculloch chain saw fuel line is a simple operation.

Mcculloch Mac Cat Cs 38 Chainsaw Manual

Mcculloch Mac 3200 Oil Line Repair. Disassembly, Oil Line, Screen, Reassembly, & Testing.

It S About A Poulan 1800 Chainsaw The Fuel Line Disintegrated In Thousand Pieces I Bought And Replaced The Line I

Mckin (Pack of 2) Air Filter + Primer Bulb Fuel Filter Line fits McCulloch MAC 3200 3516 3214 3216 Eager Beaver 2014 Chainsaw. 4.2 out of 5 stars. 86. $11.89. $11. . 89. Get it as soon as Wed, Sep 15. FREE Shipping on orders over $25 shipped by Amazon.

10 Yardsale Find Mcculloch 3200 Chainsaw Youtube

Posted by tania ricaldone on jun 12 2010. I have the new fuel line but need to verify the connections from fuel feed to primer ball primer to carb carb to fuel tank. I have a mcculloch 3200 chainsaw with a cracked primer bulb and all the fuel lines were gone. Mcculloch chain saw mac 3516 chainsaw fuel line replacement. Chain saw starts but then ...

Poulan 3818 Chainsaw Fuel Line Configuration Youtube

530037793 Air Filter Fuel Filter Line for McCulloch 2000 3200 3500 3516 Chainsaw with 530047721 Primer Bulb Spark Plug. 4.4 out of 5 stars. 175. $13.69. $13. . 69. Get it as soon as Thu, Sep 30. FREE Shipping on orders over $25 shipped by Amazon.

Ona Je Vrebati Kirurgija Mcculloch Chainsaw Repair Freewificoncierge Com

I have an old McCulloch Mac 3214 chain saw. The fuel lines were brittle and broke when I disassembled it. I need information for the correct hookup of the fuel lines--Gas tank outlet line--Gas tank return inlet line----Carburetor inlet (5/32 line size fitting)--Carburetor inlet (1/8 line size fitting)--Primer Bulb inlet--Primer Bulb outlet

Oil Tank Comp El Toro Orange For Dt100 1975 Usa Order At Cmsnl

Need a diagram for fuel lines to carb, with primer bulb on a McCulloch, MAC 3200 chainsaw. 1. from tank, with fuel filter, to bottom port on primer bulb ???2 answers · 3 votes: retgmdI need the same, did you ever find one?

How To Replace Chainsaw Fuel Lines Repair Guide

Mac 3200 Chainsaw Fuel Line Diagram. I have a mac chain saw that i can get to run but dies after awhile. I replaced the fuel lines, it runs until fuel goes uder over flow tube. I assume adjusting the carb is like your reg chainsaw adjust low idle to it's highest. Mac chainsaw fuel line routing I recently came across a very lightly used ...

Mcculloch 3200 Chainsaw Fuel Line Diagram Wiring Site Resource

If your chain saw is not performing at its full potential, then faulty fuel lines could be the culprit. A few basic tools are all you need to remove and replace the vital lines that make the gas McCulloch chain saw work so well. Replacing a McCulloch chain saw fuel line is a simple operation.

Mac 3200 Chainsaw Parts Manual Lunatree

McCulloch MAC3216 11-600032-09 gas chainsaw parts - manufacturer-approved parts for a proper fit every time! We also have installation guides, diagrams and manuals to help you along the way!

Ardisam Inc

Mac 3200 Chainsaw Service Manual Pro 222. Mac 3200 Chainsaw Manual. Mcculloch 3200 Fuel Line Diagram Â» thank you for visiting our site, this is images about mcculloch 3200 fuel line diagram posted by Alice Ferreira in Mcculloch category on Jun 22, 2019. You can also find other images like images wiring diagram, images parts diagram, images ...

Repaired Disintegrated Mcculloch 3216 Fuel Parts Arboristsite Com

Replace a Chainsaw Fuel Line. Chainsaw fuel lines can clog, crimp, or turn brittle with age and crack. This step-by-step repair guide shows how to replace a fuel line. If the fuel lines on your chainsaw leak. Time required: Less than 30 min To Replace a Chainsaw Fuel Line Tools Required

Stihl 019 T Chainsaw 019t Parts Diagram Engine Housing

I found this simple guide on how to hook up the fuel lines. Here it goes: Only the main fuel line with fuel filter goes into the bottom of the tank.

I Have A Mcculloch Electric Chainsaw Model Em14a How Do I Remove The Autosharp Bill

McCulloch MAC3214 11-600032-07 gas chainsaw parts - manufacturer-approved parts for a proper fit every time! We also have installation guides, diagrams and manuals to help you along the way!

Lagros Magazines

carburetor, and disconnect fuel line and throttle link. Tighten carburetor mounting screws to 30-40 in.-lbs. (3.4-4.5 N-m). IGNITION. All engines are equipped with an electronic ignition system. The ignition coil and electronic circuitry are contained in a one-piece ignition module (10—Fig. MC130), which is serviced as a unit assembly.

Outdoor Power Equipment Chainsaw Parts Accs 009 Stihl Chainsaw Illustrated Parts List Diagram Manual Westernfertility Com

35 Mcculloch 3200 Chainsaw Parts Diagram. Ditulis oleh Susan W Nexon Jumat, 11 September 2020 Tambah Komentar. Edit. The diagrams below can help you find the right part. Mcculloch products are identified by a model number in this instance 600035 followed by a suffix number 08. Looking For Mcculloch Model Mac3214 11 600032 07 Gas Chainsaw.

Parts For Mcculloch Page 8 Randy S Engine Repair

Primer Bulb Snap In Mcculloch Chainsaw Fuel Line Filter 3210 3214 32 Randy S Engine Repair

Mcculloch Mac 3200 Manual

Fuel Line Diagram For Mac Redledeastern

Mcculloch Chainsaw 3200 Manual

Mcculloch 3200 Chainsaw Fuel Line Diagram Wiring Site Resource

Need A Diagram For Assembling A Ignition Coil For A Homelite 150 Chainsaw Diy Forums

I Have A Mac 4600 Chainsaw That The Fuel Lines Were Dry Rotted Off And Most Missing I Need To Know Which Lines Go Where

Mac 110 Chainsaw Manual Brownprod

Solved Mcculloch Mac 3200 Chainsaw Fuel Lines Fixya

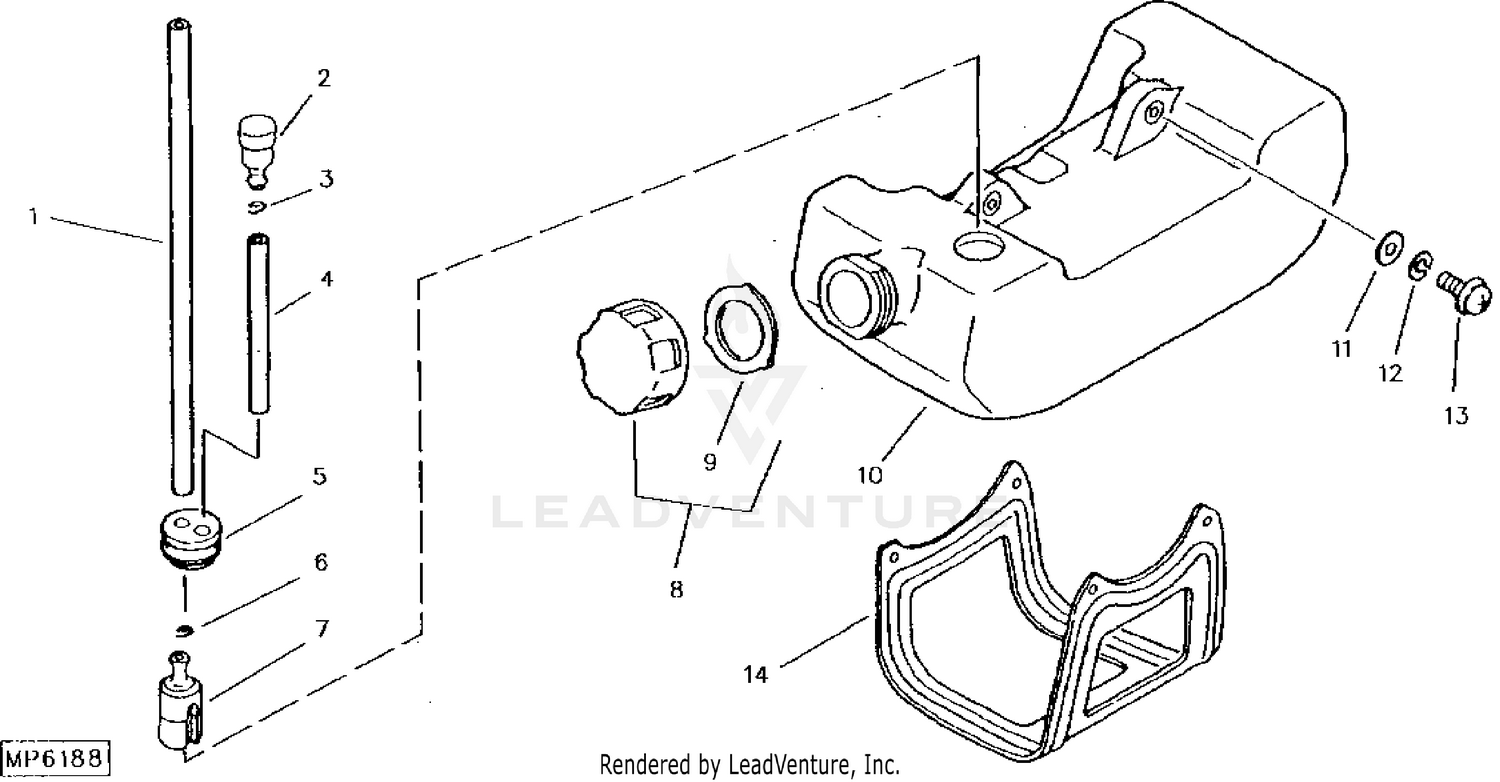

John Deere 210g String Trimmer Pc2218 M0210ga010001 M0210ga100000 1990 210g String Trimmer Pc2218 M0210ga110001 M0210ga595000 1988 210g String Trimmer Pc2218 M0210ga595001 M0210ga750000 1989 210g String Trimmer Pc2218 Fuel Tank 240g 260g
