19 Jul 2014 — I am going down the list and the next thing is the checking for proper hose routing and then leaks.. I have this schematic, but it is not 100% ... 5 Oct 2015 — Honda Civic / Del Sol (1992 - 2000) - need hose diagram! ... figure out the hoses on the back side of the engine and on the intake manifold, ...

new intake manifold gasket Y8 manifold brace about 5ft of 1/4" i.d. hose, suitable for fuel/vapor/coolant use. about 2ft of 3/8" i.d. hose, same kind of stuff premixed coolant for aluminum blocks (you're going to lose some!) *you might want to change PCV valve while manifold is off, it's not easy to get to otherwise.

D16y8 intake manifold hose diagram

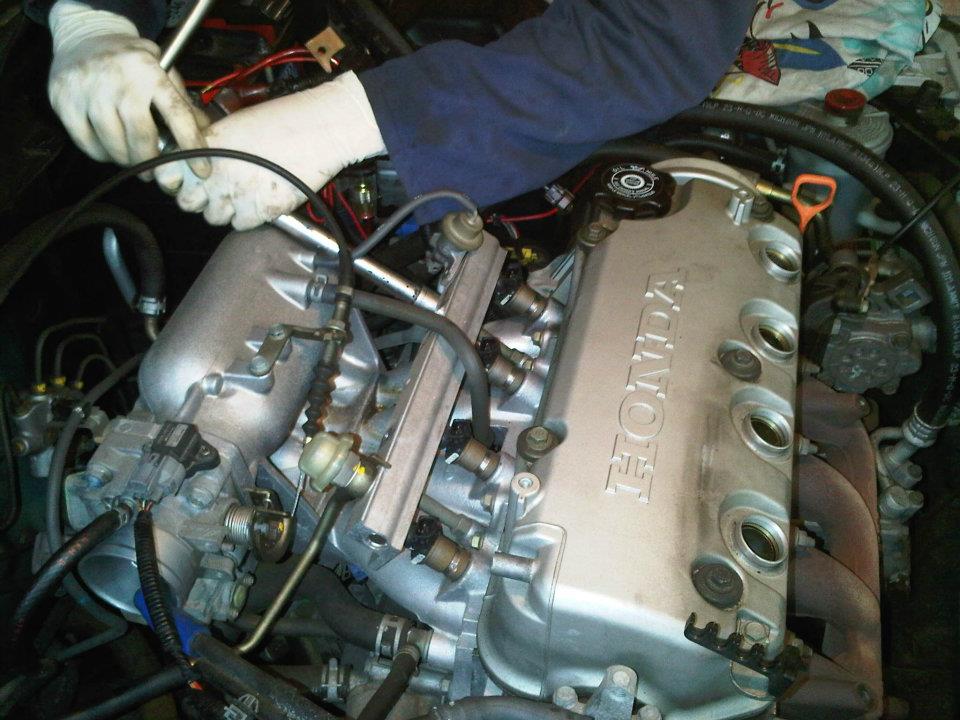

Aug 28, 2016. #1. I have gotten my hands on a Canadian 99 Civic Si (D16Y8) that was previously ripped apart and finally have the time to get it back together, but have a few questions about the cylinder head and intake manifold hose routing. The guy who had it originally also swapped the trans to manual. Ive got a 1999 civic lx d16y7. Honda civic vacuum hose diagram. Print following are vacuum diagrams for most of the engine and emissions package combinations covered by this guide. As this is a free service it receives an overwhelming amount of requests and may take up to a week or longer for a response. 8 Nov 2017 · 5 posts · 2 authorsHey guys, I recently picked up a d16y8 2000 civic ex stick. ... Hose diagram, help! ... You see on intake manifold by valve cover.

D16y8 intake manifold hose diagram. Anyway, when I block the hose from intake that goes into this valve (the engine was warm), the engine is dead right away. (Of course , the TB is totally blocked too. The idle control screw at TB is at almost closed position. I think this valve is the only gateway to keep air from going into the intake manifold when the engine is warm. I need a vacuum hose routing diagram for a D16Y8 1999 honda civic ex. I need to get a diagram that i can print out to help me reattach the vacuum hoses to my motor Posted by patrick sparkman on Mar 07, 2013. Want Answer 0. Clicking this will make more experts see the question and we will remind you when it gets answered. ... This is a quick write up on what's needed to install a D16Y8 intake manifold on a D16A6. Other manifold swaps will be similar in nature. Such as a D16Z6 manifold on a D15B7...etc. Consult a Helms manual for ... The diagram below shows the vacuum lines for a D16A6 with a D16Y8 manifold and B18A1 TB. Charcoal canister can even be used! PARTS YOU NEED!!!-D16y8 manifold and throttle body-D16y7 throttle body gasket -D15/16 intake manifold gasket-5ft 1/4 id hose-2ft vacuum hose-New pcv -New fue...

Make sure you get the rite trottle body gasket to prevent a vacuum leak. Do not not use d16y8 injector or you will run rich. All you are swaping is the manif... ... a intake manifold hose diagram... - Like the picture in the link below... https://honda-tech.com/zerothread?id=1087123 1998 Honda Civic EX 5spd...D16Y8 ... I searched but couldn't find any diagrams for d16s any d16 vacuum diagram could help. I just need to make sure my intake manifold vacuums are correct... my car ... I really don't want to put hot water hoses where vacuum lines go thus why I need the pictures. The engine is a d16y8 with the intake manifold off of a jdm ...

15 Sep 2016 — 00 Civic EX D16Y8 - Air Intake Hose Vacuum Line Question and Idle Issue ... That's the diagram I saw when I looked over the manual again. I have gotten my hands on a Canadian 99 Civic Si (D16Y8) that was have a few questions about the cylinder head and intake manifold hose routing. but in the vacuum connection diagram that I attached to this post, there. Fig. Vacuum hose routing diagram-D16Y8 engines. Click image to see an enlarged view. Fig. D16y8 intake manifold hose diagram. Remove fuel rail studs from oem manifold and install on skunk2 manifold. Hose same kind of stuff premixed coolant for aluminum blocks youre going to lose some you might want to change pcv valve while manifold is off its not easy to get to otherwise. I need a vacuum hose routing diagram for a d16y8 1999 honda ... Take A Sneak Peak At The Movies Coming Out This Week (8/12) ‘Spencer’ hauntingly illustrates Princess Diana’s royal prison; Best Reactions to Movies Out Now In Theaters

8 Nov 2017 · 5 posts · 2 authorsHey guys, I recently picked up a d16y8 2000 civic ex stick. ... Hose diagram, help! ... You see on intake manifold by valve cover.

Ive got a 1999 civic lx d16y7. Honda civic vacuum hose diagram. Print following are vacuum diagrams for most of the engine and emissions package combinations covered by this guide. As this is a free service it receives an overwhelming amount of requests and may take up to a week or longer for a response.
